| Nom De Marque: | Bronze Gleitlager |
| Numéro De Modèle: | FB092-5050 |
| Nombre De Pièces: | Communication de consultations |
| Prix: | 2.96USD/PSC |
| Conditions De Paiement: | L / C, T / T |
| Capacité à Fournir: | bagues en bronze de douille, Chine, fabricants, fournisseurs, usine, individu en gros et métallique |

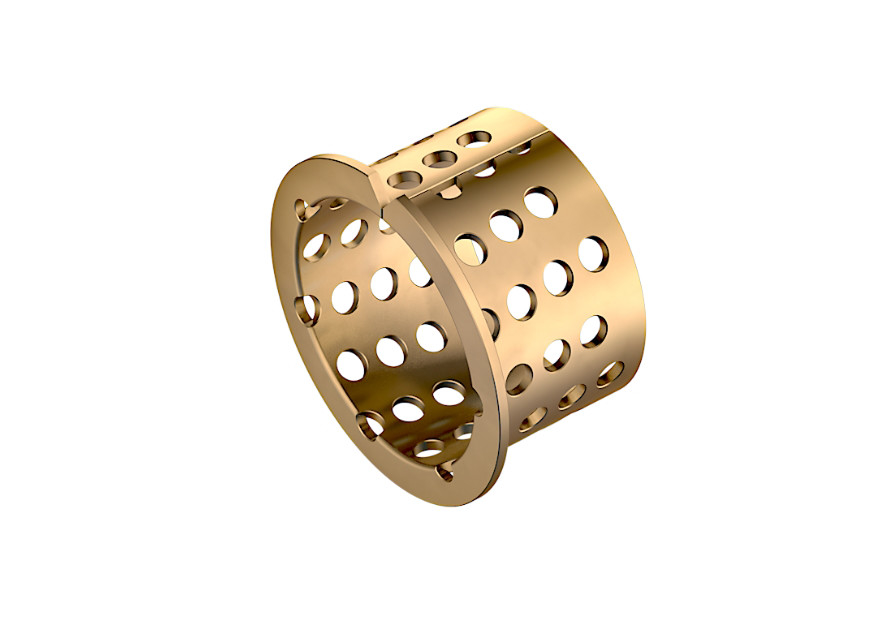

Le gleitlager en bronze FB092-5050 mm, également connu sous le nom de bague en bronze, est un composant résistant à la corrosion conçu pour être utilisé dans diverses applications industrielles. Construite à partir de matériau de bronze de haute qualité, cette bague offre une durabilité et une longévité exceptionnelles, même dans des environnements durs et corrosifs.
Le matériau en bronze du Gleitlager FB092-5050 mm possède des propriétés de résistance à la corrosion inhérentes, ce qui le rend adapté à une utilisation dans des environnements où l'exposition à l'humidité, aux produits chimiques ou à d'autres agents corrosifs est une préoccupation. Cette résistance à la corrosion garantit que la bague maintient son intégrité structurelle et ses performances au fil du temps, réduisant le besoin de remplacements fréquents.
En plus de sa résistance à la corrosion, la bague en bronze présente également une excellente résistance à l'usure et une capacité de charge. Cette combinaison de propriétés lui permet de fonctionner en douceur et de manière fiable dans des applications à forte contrainte et à haute friction.
Wh utilisé dans les moteurs, les pompes, les boîtes de vitesses ou d'autres machines rotatives, le gleitlager en bronze FB092-5050 mm fournit une solution robuste et fiable pour maintenir des opérations lisses et efficaces. Sa résistance à la corrosion et ses caractéristiques de haute performance en font un choix de confiance pour les applications industrielles où la durabilité et la fiabilité sont primordiales.
La matière première de FB092 est en alliage à chaud en phosphore à haute teneur en phosphore de haute qualité. Ce type de roulement coulissant est principalement conçu pour résister aux charges lourdes et à la résistance aux chocs. L'ensemble de la surface coulissante des roulements est recouvert de coup de poing à travers des trous, qui offrent des performances de lubrification améliorées pendant le démarrage et le fonctionnement et réduisent l'entretien périodique en réduisant la friction. FBB092 est utilisé pour le mouvement radial, swing et axial, particulièrement adapté aux charges moyennes à élevées.
La lubrification doit être obtenue à travers l'arbre ou radialement à travers le boîtier de roulement. Tous les types ou huiles de graisse couramment utilisés peuvent être utilisés.
Le roulement doit être pressé dans le boîtier de tolérance H7. La tolérance au diamètre intérieur du roulement coulissant est H9.
Forestry, Construction and Agricultural Machinery, Cranes, Friklifts and Lowing Equipment, etc.
Roulements cylindriques ordinaires, roulements à bride, rondelles de poussée, plaques coulissantes.
Production de produits FB092-5050
Pourquoi choisirviiplus fb092Bague en bronze
1) Le coût de mon produit est très bas et le prix est raisonnable
2) Mes produits sont bien reçus et dignes de confiance
3) J'ai fait du bon travail dans le service après-vente et j'ai été
Suivi de la logistique pour confirmer le reçu
4) La qualité de mes produits est très bonne
EXPÉDITION
Les principales compagnies aériennes spécialisées dans l'expédition de courrier en provenance de Chine comprennent DHL, FedEx, EMS, TNT et UPS.
Expédition express
Vos pièces d'auto-lubrification des roulements de bague en bronze arriveront plus vite en utilisant l'expédition de courrier qu'elle n'aurait fallu si vous aviez choisi d'autres
Options.
F092 -StraightF092 -Flange
| [mm] | d | D | L |
| Bronze Bushing-FB092-1010 | 10 | 12 | 10 |
| Bronze Bushing-FB092-1012 | 10 | 12 | 12 |
| Bronze Bushing-FB092-1015 | 10 | 12 | 15 |
| Bronze Bushing-FB092-1020 | 10 | 12 | 20 |
| Bronze Bushing-FB092-1108 | 11 | 13 | 8 |
| Bronze Bushing-FB092-1109 | 11 | 13 | 9 |
| Bronze Bushing-FB092-1110 | 11 | 13 | 10 |
| Bronze Bushing-FB092-1112 | 11 | 13 | 12 |
| Bronze Bushing-FB092-1206 | 12 | 14 | 6 |
| Bronze Bushing-FB092-1208 | 12 | 14 | 8 |
| Bronze Bushing-FB092-1210 | 12 | 14 | 10 |
| Bronze Bushing-FB092-1212 | 12 | 14 | 12 |
| Bronze Bushing-FB092-1214 | 12 | 14 | 14 |
| Bronze Bushing-FB092-1215 | 12 | 14 | 15 |
| Bronze Bushing-FB092-1216 | 12 | 14 | 16 |
| Bronze Bushing-FB092-1220 | 12 | 14 | 20 |
| Bronze Bushing-FB092-1225 | 12 | 14 | 25 |
| Bronze Bushing-FB092-1308 | 13 | 15 | 8 |
| Bronze Bushing-FB092-1309 | 13 | 15 | 9 |
| Bronze Bushing-FB092-1310 | 13 | 15 | 10 |
| Bronze Bushing-FB092-1312 | 13 | 15 | 12 |
| Bronze Bushing-FB092-1315 | 13 | 15 | 15 |
| Bronze Bushing-FB092-1410 | 14 | 16 | 10 |
| Bronze Bushing-FB092-1412 | 14 | 16 | 12 |
| Bronze Bushing-FB092-1415 | 14 | 16 | 15 |
| Bronze Bushing-FB092-1420 | 14 | 16 | 20 |
| Bronze Bushing-FB092-1422 | 14 | 16 | 22 |
| Bronze Bushing-FB092-1425 | 14 | 16 | 25 |
| Bronze Bushing-FB092-1508 | 15 | 17 | 8 |
| Bronze Bushing-FB092-1510 | 15 | 17 | 10 |
| Bronze Bushing-FB092-1512 | 15 | 17 | 12 |
| Bronze Bushing-FB092-1515 | 15 | 17 | 15 |
| Bronze Bushing-FB092-1518 | 15 | 17 | 18 |
| Bronze Bushing-FB092-1520 | 15 | 17 | 20 |
| Bronze Bushing-FB092-1525 | 15 | 17 | 25 |
| Bronze Bushing-FB092-1608 | 16 | 18 | 8 |
| Bronze Bushing-FB092-1610 | 16 | 18 | 10 |
| Bronze Bushing-FB092-1612 | 16 | 18 | 12 |
| Bronze Bushing-FB092-1615 | 16 | 18 | 15 |
| Bronze Bushing-FB092-1618 | 16 | 18 | 18 |
| Bronze Bushing-FB092-1620 | 16 | 18 | 20 |
| Bronze Bushing-FB092-1625 | 16 | 18 | 25 |
| Bronze Bushing-FB092-1708 | 17 | 19 | 8 |
| Bronze Bushing-FB092-1710 | 17 | 19 | 10 |
| Bronze Bushing-FB092-1712 | 17 | 19 | 12 |
| Bronze Bushing-FB092-1715 | 17 | 19 | 15 |
| Bronze Bushing-FB092-1718 | 17 | 19 | 18 |
| Bronze Bushing-FB092-1720 | 17 | 19 | 20 |
| Bronze Bushing-FB092-1725 | 17 | 19 | 25 |
| Bronze Bushing-FB092-1808 | 18 | 20 | 8 |
| Bronze Bushing-FB092-1810 | 18 | 20 | 10 |
| Bronze Bushing-FB092-1812 | 18 | 20 | 12 |
| Bronze Bushing-FB092-1815 | 18 | 20 | 15 |
| Bronze Bushing-FB092-1820 | 18 | 20 | 20 |
| Bronze Bushing-FB092-1825 | 18 | 20 | 25 |
| Bronze Bushing-FB092-1830 | 18 | 20 | 30 |
| Bronze Bushing-FB092-2008 | 20 | 23 | 8 |
| Bronze Bushing-FB092-2010 | 20 | 23 | 10 |
| Bronze Bushing-FB092-2012 | 20 | 23 | 12 |
| Bronze Bushing-FB092-2015 | 20 | 23 | 15 |
| Bronze Bushing-FB092-2020 | 20 | 23 | 20 |
| Bronze Bushing-FB092-2025 | 20 | 23 | 25 |
| Bronze Bushing-FB092-2030 | 20 | 23 | 30 |
| Bronze Bushing-FB092-2035 | 20 | 23 | 35 |
| Bronze Bushing-FB092-2040 | 20 | 23 | 40 |
| Bronze Bushing-FB092-2210 | 22 | 25 | 10 |
| Bronze Bushing-FB092-2212 | 22 | 25 | 12 |
| Bronze Bushing-FB092-2215 | 22 | 25 | 15 |
| Bronze Bushing-FB092-2220 | 22 | 25 | 20 |
| Bronze Bushing-FB092-2225 | 22 | 25 | 25 |
| Bronze Bushing-FB092-2230 | 22 | 25 | 30 |
| Bronze Bushing-FB092-2235 | 22 | 25 | 35 |
| Bronze Bushing-FB092-2238 | 22 | 25 | 38 |
| Bronze Bushing-FB092-2240 | 22 | 25 | 40 |
| Bronze Bushing-FB092-2245 | 22 | 25 | 45 |
| Bronze Bushing-FB092-2250 | 22 | 25 | 50 |
| Bronze Bushing-FB092-2410 | 24 | 27 | 10 |
| Bronze Bushing-FB092-2412 | 24 | 27 | 12 |
| Bronze Bushing-FB092-2415 | 24 | 27 | 15 |
| Bronze Bushing-FB092-2420 | 24 | 27 | 20 |
| Bronze Bushing-FB092-2425 | 24 | 27 | 25 |
| Bronze Bushing-FB092-2428 | 24 | 27 | 28 |
| Bronze Bushing-FB092-2430 | 24 | 27 | 30 |
| Bronze Bushing-FB092-2432 | 24 | 27 | 32 |
| Bronze Bushing-FB092-2435 | 24 | 27 | 35 |
| Bronze Bushing-FB092-2438 | 24 | 27 | 38 |
| Bronze Bushing-FB092-2440 | 24 | 27 | 40 |
| Bronze Bushing-FB092-2450 | 24 | 27 | 50 |
| Bronze Bushing-FB092-2510 | 25 | 28 | 10 |
| Bronze Bushing-FB092-2512 | 25 | 28 | 12 |
| Bronze Bushing-FB092-2515 | 25 | 28 | 15 |
| Bronze Bushing-FB092-2520 | 25 | 28 | 20 |
| Bronze Bushing-FB092-2525 | 25 | 28 | 25 |
| Bronze Bushing-FB092-2528 | 25 | 28 | 28 |
| Bronze Bushing-FB092-2530 | 25 | 28 | 30 |
| Bronze Bushing-FB092-2532 | 25 | 28 | 32 |
| Bronze Bushing-FB092-2535 | 25 | 28 | 35 |
| Bronze Bushing-FB092-2540 | 25 | 28 | 40 |
| Bronze Bushing-FB092-2550 | 25 | 28 | 50 |
| Bronze Bushing-FB092-2560 | 25 | 28 | 60 |
| Bronze Bushing-FB092-2610 | 26 | 30 | 10 |
| Bronze Bushing-FB092-2612 | 26 | 30 | 12 |
| Bronze Bushing-FB092-2615 | 26 | 30 | 15 |
| Bronze Bushing-FB092-2620 | 26 | 30 | 20 |
| Bronze Bushing-FB092-2625 | 26 | 30 | 25 |
| Bronze Bushing-FB092-2630 | 26 | 30 | 30 |
| Bronze Bushing-FB092-2635 | 26 | 30 | 35 |
| Bronze Bushing-FB092-2640 | 26 | 30 | 40 |
| Bronze Bushing-FB092-2650 | 26 | 30 | 50 |
| Bronze Bushing-FB092-2810 | 28 | 32 | 10 |
| Bronze Bushing-FB092-2812 | 28 | 32 | 12 |
| Bronze Bushing-FB092-2815 | 28 | 32 | 15 |
| Bronze Bushing-FB092-2820 | 28 | 32 | 20 |
| Bronze Bushing-FB092-2825 | 28 | 32 | 25 |
| Bronze Bushing-FB092-2830 | 28 | 32 | 30 |
| Bronze Bushing-FB092-2832 | 28 | 32 | 32 |
| Bronze Bushing-FB092-2835 | 28 | 32 | 35 |
| Bronze Bushing-FB092-2840 | 28 | 32 | 40 |
| Bronze Bushing-FB092-3010 | 30 | 34 | 10 |
| Bronze Bushing-FB092-3012 | 30 | 34 | 12 |
| Bronze Bushing-FB092-3015 | 30 | 34 | 15 |
| Bronze Bushing-FB092-3020 | 30 | 34 | 20 |
| Bronze Bushing-FB092-3025 | 30 | 34 | 25 |
| Bronze Bushing-FB092-3028 | 30 | 34 | 28 |
| Bronze Bushing-FB092-3030 | 30 | 34 | 30 |
| Bronze Bushing-FB092-3032 | 30 | 34 | 32 |
| Bronze Bushing-FB092-3035 | 30 | 34 | 35 |
| Bronze Bushing-FB092-3038 | 30 | 34 | 38 |
| Bronze Bushing-FB092-3040 | 30 | 34 | 40 |
| Bronze Bushing-FB092-3045 | 30 | 34 | 45 |
| Bronze Bushing-FB092-3050 | 30 | 34 | 50 |
| Bronze Bushing-FB092-3210 | 32 | 36 | 10 |
| Bronze Bushing-FB092-3212 | 32 | 36 | 12 |
| Bronze Bushing-FB092-3215 | 32 | 36 | 15 |
| Bronze Bushing-FB092-3218 | 32 | 36 | 18 |
| Bronze Bushing-FB092-3220 | 32 | 36 | 20 |
| Bronze Bushing-FB092-3225 | 32 | 36 | 25 |
| Bronze Bushing-FB092-3230 | 32 | 36 | 30 |
| Bronze Bushing-FB092-3235 | 32 | 36 | 35 |
| Bronze Bushing-FB092-3240 | 32 | 36 | 40 |
| Bronze Bushing-FB092-3245 | 32 | 36 | 45 |
| Bronze Bushing-FB092-3250 | 32 | 36 | 50 |
| Bronze Bushing-FB092-3410 | 34 | 38 | 10 |
| Bronze Bushing-FB092-3412 | 34 | 38 | 12 |
| Bronze Bushing-FB092-3415 | 34 | 38 | 15 |
| Bronze Bushing-FB092-3420 | 34 | 38 | 20 |
| Bronze Bushing-FB092-3425 | 34 | 38 | 25 |
| Bronze Bushing-FB092-3430 | 34 | 38 | 30 |
| Bronze Bushing-FB092-3435 | 34 | 38 | 35 |
| Bronze Bushing-FB092-3440 | 34 | 38 | 40 |
| Bronze Bushing-FB092-3445 | 34 | 38 | 45 |
| Bronze Bushing-FB092-3510 | 35 | 39 | 10 |
| Bronze Bushing-FB092-3512 | 35 | 39 | 12 |
| Bronze Bushing-FB092-3515 | 35 | 39 | 15 |
| Bronze Bushing-FB092-3520 | 35 | 39 | 20 |
| Bronze Bushing-FB092-3525 | 35 | 39 | 25 |
| Bronze Bushing-FB092-3530 | 35 | 39 | 30 |
| Bronze Bushing-FB092-3535 | 35 | 39 | 35 |
| Bronze Bushing-FB092-3540 | 35 | 39 | 40 |
| Bronze Bushing-FB092-3545 | 35 | 39 | 45 |
| Bronze Bushing-FB092-3550 | 35 | 39 | 50 |
| Bronze Bushing-FB092-3610 | 36 | 40 | 10 |
| Bronze Bushing-FB092-3612 | 36 | 40 | 12 |
| Bronze Bushing-FB092-3615 | 36 | 40 | 15 |
| Bronze Bushing-FB092-3620 | 36 | 40 | 20 |
| Bronze Bushing-FB092-3625 | 36 | 40 | 25 |
| Bronze Bushing-FB092-3630 | 36 | 40 | 30 |
| Bronze Bushing-FB092-3635 | 36 | 40 | 35 |
| Bronze Bushing-FB092-3640 | 36 | 40 | 40 |
| Bronze Bushing-FB092-3645 | 36 | 40 | 45 |
| Bronze Bushing-FB092-3650 | 36 | 40 | 50 |
| Bronze Bushing-FB092-3812 | 38 | 42 | 12 |
| Bronze Bushing-FB092-3815 | 38 | 42 | 15 |
| Bronze Bushing-FB092-3820 | 38 | 42 | 20 |
| Bronze Bushing-FB092-3825 | 38 | 42 | 25 |
| Bronze Bushing-FB092-3830 | 38 | 42 | 30 |
| Bronze Bushing-FB092-3835 | 38 | 42 | 35 |
| Bronze Bushing-FB092-3840 | 38 | 42 | 40 |
| Bronze Bushing-FB092-3845 | 38 | 42 | 45 |
| Bronze Bushing-FB092-3850 | 38 | 42 | 50 |
| Bronze Bushing-FB092-3855 | 38 | 42 | 55 |
| Bronze Bushing-FB092-3860 | 38 | 42 | 60 |
| Bronze Bushing-FB092-4012 | 40 | 44 | 12 |
| Bronze Bushing-FB092-4015 | 40 | 44 | 15 |
| Bronze Bushing-FB092-4020 | 40 | 44 | 20 |
| Bronze Bushing-FB092-4025 | 40 | 44 | 25 |
| Bronze Bushing-FB092-4030 | 40 | 44 | 30 |
| Bronze Bushing-FB092-4035 | 40 | 44 | 35 |
| Bronze Bushing-FB092-4040 | 40 | 44 | 40 |
| Bronze Bushing-FB092-4045 | 40 | 44 | 45 |
| Bronze Bushing-FB092-4050 | 40 | 44 | 50 |
| Bronze Bushing-FB092-4055 | 40 | 44 | 55 |
| Bronze Bushing-FB092-4060 | 40 | 44 | 60 |
| Bronze Bushing-FB092-4212 | 42 | 46 | 12 |
| Bronze Bushing-FB092-4215 | 42 | 46 | 15 |
| Bronze Bushing-FB092-4220 | 42 | 46 | 20 |
| Bronze Bushing-FB092-4225 | 42 | 46 | 25 |
| Bronze Bushing-FB092-4230 | 42 | 46 | 30 |
| Bronze Bushing-FB092-4235 | 42 | 46 | 35 |
| Bronze Bushing-FB092-4240 | 42 | 46 | 40 |
| Bronze Bushing-FB092-4245 | 42 | 46 | 45 |
| Bronze Bushing-FB092-4250 | 42 | 46 | 50 |
| Bronze Bushing-FB092-4255 | 42 | 46 | 55 |
| Bronze Bushing-FB092-4260 | 42 | 46 | 60 |
| Bronze Bushing-FB092-4412 | 44 | 48 | 12 |
| Bronze Bushing-FB092-4415 | 44 | 48 | 15 |
| Bronze Bushing-FB092-4420 | 44 | 48 | 20 |
| Bronze Bushing-FB092-4425 | 44 | 48 | 25 |
| Bronze Bushing-FB092-4430 | 44 | 48 | 30 |
| Bronze Bushing-FB092-4435 | 44 | 48 | 35 |
| Bronze Bushing-FB092-4440 | 44 | 48 | 40 |
| Bronze Bushing-FB092-4445 | 44 | 48 | 45 |
| Bronze Bushing-FB092-4450 | 44 | 48 | 50 |
| Bronze Bushing-FB092-4455 | 44 | 48 | 55 |
| Bronze Bushing-FB092-4460 | 44 | 48 | 60 |
| Bronze Bushing-FB092-4518 | 45 | 50 | 18 |
| Bronze Bushing-FB092-4520 | 45 | 50 | 20 |
| Bronze Bushing-FB092-4525 | 45 | 50 | 25 |
| Bronze Bushing-FB092-4530 | 45 | 50 | 30 |
| Bronze Bushing-FB092-4535 | 45 | 50 | 35 |
| Bronze Bushing-FB092-4540 | 45 | 50 | 40 |
| Bronze Bushing-FB092-4545 | 45 | 50 | 45 |
| Bronze Bushing-FB092-4550 | 45 | 50 | 50 |
| Bronze Bushing-FB092-4555 | 45 | 50 | 55 |
| Bronze Bushing-FB092-4560 | 45 | 50 | 60 |
| Bronze Bushing-FB092-5015 | 50 | 55 | 15 |
| Bronze Bushing-FB092-5020 | 50 | 55 | 20 |
| Bronze Bushing-FB092-5025 | 50 | 55 | 25 |
| Bronze Bushing-FB092-5030 | 50 | 55 | 30 |
| Bronze Bushing-FB092-5035 | 50 | 55 | 35 |
| Bronze Bushing-FB092-5040 | 50 | 55 | 40 |
| Bronze Bushing-FB092-5045 | 50 | 55 | 45 |
| Bronze Bushing-FB092-5050 | 50 | 55 | 50 |
| Bronze Bushing-FB092-5055 | 50 | 55 | 55 |
| Bronze Bushing-FB092-5060 | 50 | 55 | 60 |
| Bronze Bushing-FB092-5065 | 50 | 55 | 65 |
| Bronze Bushing-FB092-5070 | 50 | 55 | 70 |
| Bronze Bushing-FB092-5515 | 55 | 60 | 15 |
| Bronze Bushing-FB092-5520 | 55 | 60 | 20 |
| Bronze Bushing-FB092-5525 | 55 | 60 | 25 |
| Bronze Bushing-FB092-5530 | 55 | 60 | 30 |
| Bronze Bushing-FB092-5535 | 55 | 60 | 35 |
| Bronze Bushing-FB092-5540 | 55 | 60 | 40 |
| Bronze Bushing-FB092-5545 | 55 | 60 | 45 |
| Bronze Bushing-FB092-5550 | 55 | 60 | 50 |
| Bronze Bushing-FB092-5555 | 55 | 60 | 55 |
| Bronze Bushing-FB092-5560 | 55 | 60 | 60 |
| Bronze Bushing-FB092-5565 | 55 | 60 | 65 |
| Bronze Bushing-FB092-5570 | 55 | 60 | 70 |
| Bronze Bushing-FB092-6015 | 60 | 65 | 15 |
| Bronze Bushing-FB092-6020 | 60 | 65 | 20 |
| Bronze Bushing-FB092-6025 | 60 | 65 | 25 |
| Bronze Bushing-FB092-6030 | 60 | 65 | 30 |
| Bronze Bushing-FB092-6035 | 60 | 65 | 35 |
| Bronze Bushing-FB092-6040 | 60 | 65 | 40 |
| Bronze Bushing-FB092-6045 | 60 | 65 | 45 |
| Bronze Bushing-FB092-6050 | 60 | 65 | 50 |
| Bronze Bushing-FB092-6055 | 60 | 65 | 55 |
| Bronze Bushing-FB092-6060 | 60 | 65 | 60 |
| Bronze Bushing-FB092-6065 | 60 | 65 | 65 |
| Bronze Bushing-FB092-6070 | 60 | 65 | 70 |
| Bronze Bushing-FB092-6075 | 60 | 65 | 75 |
| Bronze Bushing-FB092-6080 | 60 | 65 | 80 |
| Bronze Bushing-FB092-6085 | 60 | 65 | 85 |
| Bronze Bushing-FB092-6090 | 60 | 65 | 90 |
| Bronze Bushing-FB092-6515 | 65 | 70 | 15 |
| Bronze Bushing-FB092-6520 | 65 | 70 | 20 |
| Bronze Bushing-FB092-6530 | 65 | 70 | 30 |
| Bronze Bushing-FB092-6540 | 65 | 70 | 40 |
| Bronze Bushing-FB092-6550 | 65 | 70 | 50 |
| Bronze Bushing-FB092-6560 | 65 | 70 | 60 |
| Bronze Bushing-FB092-6570 | 65 | 70 | 70 |
| Bronze Bushing-FB092-6580 | 65 | 70 | 80 |
| Bronze Bushing-FB092-6590 | 65 | 70 | 90 |
| Bronze Bushing-FB092-7020 | 70 | 75 | 20 |
| Bronze Bushing-FB092-7030 | 70 | 75 | 30 |
| Bronze Bushing-FB092-7040 | 70 | 75 | 40 |
| Bronze Bushing-FB092-7045 | 70 | 75 | 45 |
| Bronze Bushing-FB092-7050 | 70 | 75 | 50 |
| Bronze Bushing-FB092-7060 | 70 | 75 | 60 |
| Bronze Bushing-FB092-7070 | 70 | 75 | 70 |
| Bronze Bushing-FB092-7080 | 70 | 75 | 80 |
| Bronze Bushing-FB092-7090 | 70 | 75 | 90 |
| Bronze Bushing-FB092-7530 | 75 | 80 | 30 |
| Bronze Bushing-FB092-7540 | 75 | 80 | 40 |
| Bronze Bushing-FB092-7550 | 75 | 80 | 50 |
| Bronze Bushing-FB092-7560 | 75 | 80 | 60 |
| Bronze Bushing-FB092-7570 | 75 | 80 | 70 |
| Bronze Bushing-FB092-7580 | 75 | 80 | 80 |
| Bronze Bushing-FB092-7590 | 75 | 80 | 90 |
| Bronze Bushing-FB092-8030 | 80 | 85 | 30 |
| Bronze Bushing-FB092-8040 | 80 | 85 | 40 |
| Bronze Bushing-FB092-8050 | 80 | 85 | 50 |
| Bronze Bushing-FB092-8060 | 80 | 85 | 60 |
| Bronze Bushing-FB092-8070 | 80 | 85 | 70 |
| Bronze Bushing-FB092-8080 | 80 | 85 | 80 |
| Bronze Bushing-FB092-8090 | 80 | 85 | 90 |
| Bronze Bushing-FB092-80100 | 80 | 85 | 100 |
| Bronze Bushing-FB092-8530 | 85 | 90 | 30 |
| Bronze Bushing-FB092-8540 | 85 | 90 | 40 |
| Bronze Bushing-FB092-8550 | 85 | 90 | 50 |
| Bronze Bushing-FB092-8560 | 85 | 90 | 60 |
| Bronze Bushing-FB092-8570 | 85 | 90 | 70 |
| Bronze Bushing-FB092-8580 | 85 | 90 | 80 |
| Bronze Bushing-FB092-8590 | 85 | 90 | 90 |
| Bronze Bushing-FB092-85100 | 85 | 90 | 100 |
| Bronze Bushing-FB092-9030 | 90 | 95 | 30 |
| Bronze Bushing-FB092-9040 | 90 | 95 | 40 |
| Bronze Bushing-FB092-9050 | 90 | 95 | 50 |
| Bronze Bushing-FB092-9060 | 90 | 95 | 60 |
| Bronze Bushing-FB092-9070 | 90 | 95 | 70 |
| Bronze Bushing-FB092-9080 | 90 | 95 | 80 |
| Bronze Bushing-FB092-9090 | 90 | 95 | 90 |
| Bronze Bushing-FB092-90100 | 90 | 95 | 100 |
| Bronze Bushing-FB092-9530 | 95 | 100 | 30 |
| Bronze Bushing-FB092-9540 | 95 | 100 | 40 |
| Bronze Bushing-FB092-9550 | 95 | 100 | 50 |
| Bronze Bushing-FB092-9560 | 95 | 100 | 60 |
| Bronze Bushing-FB092-9570 | 95 | 100 | 70 |
| Bronze Bushing-FB092-9580 | 95 | 100 | 80 |
| Bronze Bushing-FB092-9590 | 95 | 100 | 90 |
| Bronze Bushing-FB092-95100 | 95 | 100 | 100 |
| Bronze Bushing-FB092-10030 | 100 | 105 | 30 |
| Bronze Bushing-FB092-10040 | 100 | 105 | 40 |
| Bronze Bushing-FB092-10050 | 100 | 105 | 50 |
| Bronze Bushing-FB092-10060 | 100 | 105 | 60 |
| Bronze Bushing-FB092-10070 | 100 | 105 | 70 |
| Bronze Bushing-FB092-10080 | 100 | 105 | 80 |
| Bronze Bushing-FB092-10090 | 100 | 105 | 90 |
| Bronze Bushing-FB092-10095 | 100 | 105 | 95 |
| Bronze Bushing-FB092-100100 | 100 | 105 | 100 |
| Bronze Bushing-FB092-100115 | 100 | 105 | 115 |
| Bronze Bushing-FB092-10550 | 105 | 110 | 50 |
| Bronze Bushing-FB092-10560 | 105 | 110 | 60 |
| Bronze Bushing-FB092-10570 | 105 | 110 | 70 |
| Bronze Bushing-FB092-10580 | 105 | 110 | 80 |
| Bronze Bushing-FB092-10590 | 105 | 110 | 90 |
| Bronze Bushing-FB092-105100 | 105 | 110 | 100 |
| Bronze Bushing-FB092-105115 | 105 | 110 | 115 |
| Bronze Bushing-FB092-11050 | 110 | 115 | 50 |
| Bronze Bushing-FB092-11060 | 110 | 115 | 60 |
| Bronze Bushing-FB092-11070 | 110 | 115 | 70 |
| Bronze Bushing-FB092-11080 | 110 | 115 | 80 |
| Bronze Bushing-FB092-11090 | 110 | 115 | 90 |
| Bronze Bushing-FB092-110100 | 110 | 115 | 100 |
| Bronze Bushing-FB092-110115 | 110 | 115 | 115 |
| Bronze Bushing-FB092-11550 | 115 | 120 | 50 |
| Bronze Bushing-FB092-11560 | 115 | 120 | 60 |
| Bronze Bushing-FB092-11570 | 115 | 120 | 70 |
| Bronze Bushing-FB092-11580 | 115 | 120 | 80 |
| Bronze Bushing-FB092-11590 | 115 | 120 | 90 |
| Bronze Bushing-FB092-115100 | 115 | 120 | 100 |
| Bronze Bushing-FB092-115115 | 115 | 120 | 115 |
| Bronze Bushing-FB092-12050 | 120 | 125 | 50 |
| Bronze Bushing-FB092-12060 | 120 | 125 | 60 |
| Bronze Bushing-FB092-12070 | 120 | 125 | 70 |
| Bronze Bushing-FB092-12080 | 120 | 125 | 80 |
| Bronze Bushing-FB092-12090 | 120 | 125 | 90 |
| Bronze Bushing-FB092-120100 | 120 | 125 | 100 |
| Bronze Bushing-FB092-120120 | 120 | 125 | 120 |
| Bronze Bushing-FB092-12550 | 125 | 130 | 50 |
| Bronze Bushing-FB092-12560 | 125 | 130 | 60 |
| Bronze Bushing-FB092-12570 | 125 | 130 | 70 |
| Bronze Bushing-FB092-12580 | 125 | 130 | 80 |
| Bronze Bushing-FB092-12590 | 125 | 130 | 90 |
| Bronze Bushing-FB092-125100 | 125 | 130 | 100 |
| Bronze Bushing-FB092-125115 | 125 | 130 | 115 |
| Bronze Bushing-FB092-13060 | 130 | 135 | 60 |
| Bronze Bushing-FB092-13070 | 130 | 135 | 70 |
| Bronze Bushing-FB092-13080 | 130 | 135 | 80 |
| Bronze Bushing-FB092-13090 | 130 | 135 | 90 |
| Bronze Bushing-FB092-130100 | 130 | 135 | 100 |
| Bronze Bushing-FB092-130120 | 130 | 135 | 120 |
| Bronze Bushing-FB092-13560 | 135 | 140 | 60 |
| Bronze Bushing-FB092-13570 | 135 | 140 | 70 |
| Bronze Bushing-FB092-13580 | 135 | 140 | 80 |
| Bronze Bushing-FB092-13590 | 135 | 140 | 90 |
| Bronze Bushing-FB092-135100 | 135 | 140 | 100 |
| Bronze Bushing-FB092-135120 | 135 | 140 | 120 |
| Bronze Bushing-FB092-14060 | 140 | 145 | 60 |
| Bronze Bushing-FB092-14070 | 140 | 145 | 70 |
| Bronze Bushing-FB092-14080 | 140 | 145 | 80 |
| Bronze Bushing-FB092-14090 | 140 | 145 | 90 |
| Bronze Bushing-FB092-140100 | 140 | 145 | 100 |
| Bronze Bushing-FB092-14560 | 145 | 150 | 60 |
| Bronze Bushing-FB092-14570 | 145 | 150 | 70 |
| Bronze Bushing-FB092-14580 | 145 | 150 | 80 |
| Bronze Bushing-FB092-14590 | 145 | 150 | 90 |
| Bronze Bushing-FB092-145110 | 145 | 150 | 100 |
| Bronze Bushing-FB092-145120 | 145 | 150 | 120 |
| Bronze Bushing-FB092-15060 | 150 | 155 | 60 |
| Bronze Bushing-FB092-15070 | 150 | 155 | 70 |
| Bronze Bushing-FB092-15080 | 150 | 155 | 80 |
| Bronze Bushing-FB092-15090 | 150 | 155 | 90 |
| Bronze Bushing-FB092-150100 | 150 | 155 | 100 |
| Bronze Bushing-FB092-15550 | 155 | 160 | 50 |
| Bronze Bushing-FB092-15560 | 155 | 160 | 60 |
| Bronze Bushing-FB092-15570 | 155 | 160 | 70 |
| Bronze Bushing-FB092-15580 | 155 | 160 | 80 |
| Bronze Bushing-FB092-15590 | 155 | 160 | 90 |
| Bronze Bushing-FB092-155100 | 155 | 160 | 100 |
| Bronze Bushing-FB092-16060 | 160 | 165 | 60 |
| Bronze Bushing-FB092-16070 | 160 | 165 | 70 |
| Bronze Bushing-FB092-16080 | 160 | 165 | 80 |
| Bronze Bushing-FB092-16090 | 160 | 165 | 90 |
| Bronze Bushing-FB092-160100 | 160 | 165 | 100 |
| Bronze Bushing-FB092-160110 | 160 | 165 | 110 |
| Bronze Bushing-FB092-160120 | 160 | 165 | 120 |
| Bronze Bushing-FB092-160130 | 160 | 165 | 130 |
| Bronze Bushing-FB092-160140 | 160 | 165 | 140 |
| Bronze Bushing-FB092-160150 | 160 | 165 | 150 |
| Bronze Bushing-FB092-16560 | 165 | 170 | 60 |
| Bronze Bushing-FB092-16570 | 165 | 170 | 70 |
| Bronze Bushing-FB092-16580 | 165 | 170 | 80 |
| Bronze Bushing-FB092-16590 | 165 | 170 | 90 |
| Bronze Bushing-FB092-165100 | 165 | 170 | 100 |
| Bronze Bushing-FB092-165110 | 165 | 170 | 110 |
| Bronze Bushing-FB092-165120 | 165 | 170 | 120 |
| Bronze Bushing-FB092-165130 | 165 | 170 | 130 |
| Bronze Bushing-FB092-165140 | 165 | 170 | 140 |
| Bronze Bushing-FB092-165150 | 165 | 170 | 150 |
| Bronze Bushing-FB092-17060 | 170 | 175 | 60 |
| Bronze Bushing-FB092-17070 | 170 | 175 | 70 |
| Bronze Bushing-FB092-17080 | 170 | 175 | 80 |
| Bronze Bushing-FB092-17090 | 170 | 175 | 90 |
| Bronze Bushing-FB092-170100 | 170 | 175 | 100 |
| Bronze Bushing-FB092-170110 | 170 | 175 | 110 |
| Bronze Bushing-FB092-170120 | 170 | 175 | 120 |
| Bronze Bushing-FB092-170430 | 170 | 175 | 130 |
| Bronze Bushing-FB092-170140 | 170 | 175 | 140 |
| Bronze Bushing-FB092-170150 | 170 | 175 | 150 |
| Bronze Bushing-FB092-17560 | 175 | 180 | 60 |
| Bronze Bushing-FB092-17570 | 175 | 180 | 70 |
| Bronze Bushing-FB092-17580 | 175 | 180 | 80 |
| Bronze Bushing-FB092-17590 | 175 | 180 | 90 |
| Bronze Bushing-FB092-175100 | 175 | 180 | 100 |
| Bronze Bushing-FB092-175110 | 175 | 180 | 110 |
| Bronze Bushing-FB092-175120 | 175 | 180 | 120 |
| Bronze Bushing-FB092-175130 | 175 | 180 | 130 |
| Bronze Bushing-FB092-175140 | 175 | 180 | 140 |
| Bronze Bushing-FB092-175150 | 175 | 180 | 150 |
| Bronze Bushing-FB092-18060 | 180 | 185 | 60 |
| Bronze Bushing-FB092-18070 | 180 | 185 | 70 |
| Bronze Bushing-FB092-18080 | 180 | 185 | 80 |
| Bronze Bushing-FB092-18090 | 180 | 185 | 90 |
| Bronze Bushing-FB092-180100 | 180 | 185 | 100 |
| Bronze Bushing-FB092-180110 | 180 | 185 | 110 |
| Bronze Bushing-FB092-180120 | 180 | 185 | 120 |
| Bronze Bushing-FB092-180130 | 180 | 185 | 130 |
| Bronze Bushing-FB092-180140 | 180 | 185 | 140 |
| Bronze Bushing-FB092-180150 | 180 | 185 | 150 |
| Bronze Bushing-FB092-18560 | 185 | 190 | 60 |
| Bronze Bushing-FB092-18570 | 185 | 190 | 70 |
| Bronze Bushing-FB092-18580 | 185 | 190 | 80 |
| Bronze Bushing-FB092-18590 | 185 | 190 | 90 |
| Bronze Bushing-FB092-185100 | 185 | 190 | 100 |
| Bronze Bushing-FB092-185110 | 185 | 190 | 110 |
| Bronze Bushing-FB092-185120 | 185 | 190 | 120 |
| Bronze Bushing-FB092-185130 | 185 | 190 | 130 |
| Bronze Bushing-FB092-185140 | 185 | 190 | 140 |
| Bronze Bushing-FB092-185150 | 185 | 190 | 150 |
| Bronze Bushing-FB092-19060 | 190 | 195 | 60 |
| Bronze Bushing-FB092-19070 | 190 | 195 | 70 |
| Bronze Bushing-FB092-19080 | 190 | 195 | 80 |
| Bronze Bushing-FB092-19090 | 190 | 195 | 90 |
| Bronze Bushing-FB092-190100 | 190 | 195 | 100 |
| Bronze Bushing-FB092-190110 | 190 | 195 | 110 |
| Bronze Bushing-FB092-190120 | 190 | 195 | 120 |
| Bronze Bushing-FB092-190130 | 190 | 195 | 130 |
| Bronze Bushing-FB092-190140 | 190 | 195 | 140 |
| Bronze Bushing-FB092-190150 | 190 | 195 | 150 |
| Bronze Bushing-FB092-19560 | 195 | 200 | 60 |
| Bronze Bushing-FB092-19570 | 195 | 200 | 70 |
| Bronze Bushing-FB092-19580 | 195 | 200 | 80 |
| Bronze Bushing-FB092-19590 | 195 | 200 | 90 |
| Bronze Bushing-FB092-195100 | 195 | 200 | 100 |
| Bronze Bushing-FB092-195110 | 195 | 200 | 110 |
| Bronze Bushing-FB092-195120 | 195 | 200 | 120 |
| Bronze Bushing-FB092-195130 | 195 | 200 | 130 |
| Bronze Bushing-FB092-195140 | 195 | 200 | 140 |
| Bronze Bushing-FB092-195150 | 195 | 200 | 150 |
| Bronze Bushing-FB092-20060 | 200 | 205 | 60 |
| Bronze Bushing-FB092-20070 | 200 | 205 | 70 |
| Bronze Bushing-FB092-20080 | 200 | 205 | 80 |
| Bronze Bushing-FB092-20090 | 200 | 205 | 90 |
| Bronze Bushing-FB092-200100 | 200 | 205 | 100 |
| Bronze Bushing-FB092-200110 | 200 | 205 | 110 |
| Bronze Bushing-FB092-200120 | 200 | 205 | 120 |
| Bronze Bushing-FB092-200130 | 200 | 205 | 130 |
| Bronze Bushing-FB092-200140 | 200 | 205 | 140 |
| Bronze Bushing-FB092-200150 | 200 | 205 | 150 |
| Bronze Bushing-FB092-20560 | 205 | 210 | 60 |
| Bronze Bushing-FB092-20570 | 205 | 210 | 70 |
| Bronze Bushing-FB092-20580 | 205 | 210 | 80 |
| Bronze Bushing-FB092-20590 | 205 | 210 | 90 |
| Bronze Bushing-FB092-205100 | 205 | 210 | 100 |
| Bronze Bushing-FB092-205110 | 205 | 210 | 110 |
| Bronze Bushing-FB092-205120 | 205 | 210 | 120 |
| Bronze Bushing-FB092-205130 | 205 | 210 | 130 |
| Bronze Bushing-FB092-205140 | 205 | 210 | 140 |
| Bronze Bushing-FB092-205150 | 205 | 210 | 150 |
| Bronze Bushing-FB092-21060 | 210 | 215 | 60 |
| Bronze Bushing-FB092-21070 | 210 | 215 | 70 |
| Bronze Bushing-FB092-21080 | 210 | 215 | 80 |
| Bronze Bushing-FB092-21090 | 210 | 215 | 90 |
| Bronze Bushing-FB092-210100 | 210 | 215 | 100 |
| Bronze Bushing-FB092-210110 | 210 | 215 | 110 |
| Bronze Bushing-FB092-210120 | 210 | 215 | 120 |
| Bronze Bushing-FB092-210130 | 210 | 215 | 130 |
| Bronze Bushing-FB092-210140 | 210 | 215 | 140 |
| Bronze Bushing-FB092-210150 | 210 | 215 | 150 |
| Bronze Bushing-FB092-21560 | 215 | 220 | 60 |
| Bronze Bushing-FB092-21570 | 215 | 220 | 70 |
| Bronze Bushing-FB092-21580 | 215 | 220 | 80 |
| Bronze Bushing-FB092-21590 | 215 | 220 | 90 |
| Bronze Bushing-FB092-215100 | 215 | 220 | 100 |
| Bronze Bushing-FB092-215110 | 215 | 220 | 110 |
| Bronze Bushing-FB092-215120 | 215 | 220 | 120 |
| Bronze Bushing-FB092-215130 | 215 | 220 | 130 |
| Bronze Bushing-FB092-215140 | 215 | 220 | 140 |
| Bronze Bushing-FB092-215150 | 215 | 220 | 150 |
| Bronze Bushing-FB092-22060 | 220 | 225 | 60 |
| Bronze Bushing-FB092-22070 | 220 | 225 | 70 |
| Bronze Bushing-FB092-22080 | 220 | 225 | 80 |
| Bronze Bushing-FB092-22090 | 220 | 225 | 90 |
| Bronze Bushing-FB092-220100 | 220 | 225 | 100 |
| Bronze Bushing-FB092-220110 | 220 | 225 | 110 |
| Bronze Bushing-FB092-220120 | 220 | 225 | 120 |
| Bronze Bushing-FB092-220130 | 220 | 225 | 130 |
| Bronze Bushing-FB092-220140 | 220 | 225 | 140 |
| Bronze Bushing-FB092-220150 | 220 | 225 | 150 |
| Bronze Bushing-FB092-22560 | 225 | 230 | 60 |
| Bronze Bushing-FB092-22570 | 225 | 230 | 70 |
| Bronze Bushing-FB092-22580 | 225 | 230 | 80 |
| Bronze Bushing-FB092-22590 | 225 | 230 | 90 |
| Bronze Bushing-FB092-225100 | 225 | 230 | 100 |
| Bronze Bushing-FB092-225110 | 225 | 230 | 110 |
| Bronze Bushing-FB092-225120 | 225 | 230 | 120 |
| Bronze Bushing-FB092-225130 | 225 | 230 | 130 |
| Bronze Bushing-FB092-225140 | 225 | 230 | 140 |
| Bronze Bushing-FB092-225150 | 225 | 230 | 150 |
| Bronze Bushing-FB092-23060 | 230 | 235 | 60 |
| Bronze Bushing-FB092-23070 | 230 | 235 | 70 |
| Bronze Bushing-FB092-23080 | 230 | 235 | 80 |
| Bronze Bushing-FB092-23090 | 230 | 235 | 90 |
| Bronze Bushing-FB092-230100 | 230 | 235 | 100 |
| Bronze Bushing-FB092-230110 | 230 | 235 | 110 |
| Bronze Bushing-FB092-230120 | 230 | 235 | 120 |
| Bronze Bushing-FB092-230130 | 230 | 235 | 130 |
| Bronze Bushing-FB092-230140 | 230 | 235 | 140 |
| Bronze Bushing-FB092-230150 | 230 | 235 | 150 |
| Bronze Bushing-FB092-24060 | 240 | 245 | 60 |
| Bronze Bushing-FB092-24070 | 240 | 245 | 70 |
| Bronze Bushing-FB092-24080 | 240 | 245 | 80 |
| Bronze Bushing-FB092-24090 | 240 | 245 | 90 |
| Bronze Bushing-FB092-240100 | 240 | 245 | 100 |
| Bronze Bushing-FB092-240110 | 240 | 245 | 110 |
| Bronze Bushing-FB092-240120 | 240 | 245 | 120 |
| Bronze Bushing-FB092-240130 | 240 | 245 | 130 |
| Bronze Bushing-FB092-240140 | 240 | 245 | 140 |
| Bronze Bushing-FB092-240150 | 240 | 245 | 150 |
| Bronze Bushing-FB092-25060 | 250 | 255 | 60 |
| Bronze Bushing-FB092-25070 | 250 | 255 | 70 |
| Bronze Bushing-FB092-25080 | 250 | 255 | 80 |
| Bronze Bushing-FB092-25090 | 250 | 255 | 90 |
| Bronze Bushing-FB092-250110 | 250 | 255 | 100 |
| Bronze Bushing-FB092-250110 | 250 | 255 | 110 |
| Bronze Bushing-FB092-250120 | 250 | 255 | 120 |
| Bronze Bushing-FB092-250130 | 250 | 255 | 130 |
| Bronze Bushing-FB092-250140 | 250 | 255 | 140 |
| Bronze Bushing-FB092-250150 | 250 | 255 | 150 |
| Bronze Bushing-FB092-26060 | 260 | 265 | 60 |
| Bronze Bushing-FB092-26070 | 260 | 265 | 70 |
| Bronze Bushing-FB092-26080 | 260 | 265 | 80 |
| Bronze Bushing-FB092-26090 | 260 | 265 | 90 |
| Bronze Bushing-FB092-260100 | 260 | 265 | 100 |
| Bronze Bushing-FB092-260110 | 260 | 265 | 110 |
| Bronze Bushing-FB092-260120 | 260 | 265 | 120 |
| Bronze Bushing-FB092-260130 | 260 | 265 | 130 |
| Bronze Bushing-FB092-260140 | 260 | 265 | 140 |
| Bronze Bushing-FB092-260150 | 260 | 265 | 150 |
| Bronze Bushing-FB092-27060 | 270 | 275 | 60 |
| Bronze Bushing-FB092-27070 | 270 | 275 | 70 |
| Bronze Bushing-FB092-27080 | 270 | 275 | 80 |
| Bronze Bushing-FB092-27090 | 270 | 275 | 90 |
| Bronze Bushing-FB092-270100 | 270 | 275 | 100 |
| Bronze Bushing-FB092-270110 | 270 | 275 | 110 |
| Bronze Bushing-FB092-270120 | 270 | 275 | 120 |
| Bronze Bushing-FB092-270130 | 270 | 275 | 130 |
| Bronze Bushing-FB092-270140 | 270 | 275 | 140 |
| Bronze Bushing-FB092-270150 | 270 | 275 | 150 |
| Bronze Bushing-FB092-28060 | 280 | 285 | 60 |
| Bronze Bushing-FB092-28070 | 280 | 285 | 70 |
| Bronze Bushing-FB092-28080 | 280 | 285 | 80 |
| Bronze Bushing-FB092-280100 | 280 | 285 | 90 |
| Bronze Bushing-FB092-280110 | 280 | 285 | 100 |
| Bronze Bushing-FB092-280120 | 280 | 285 | 110 |
| Bronze Bushing-FB092-280130 | 280 | 285 | 120 |
| Bronze Bushing-FB092-280140 | 280 | 285 | 130 |
| Bronze Bushing-FB092-280150 | 280 | 285 | 140 |
| Bronze Bushing-FB092-280150 | 280 | 285 | 150 |
| Bronze Bushing-FB092-29060 | 290 | 295 | 60 |
| Bronze Bushing-FB092-29070 | 290 | 295 | 70 |
| Bronze Bushing-FB092-29080 | 290 | 295 | 80 |
| Bronze Bushing-FB092-29090 | 290 | 295 | 90 |
| Bronze Bushing-FB092-290100 | 290 | 295 | 100 |
| Bronze Bushing-FB092-290110 | 290 | 295 | 110 |
| Bronze Bushing-FB092-290120 | 290 | 295 | 120 |
| Bronze Bushing-FB092-290130 | 290 | 295 | 130 |
| Bronze Bushing-FB092-290140 | 290 | 295 | 140 |
| Bronze Bushing-FB092-290150 | 290 | 295 | 150 |
| Bronze Bushing-FB092-30060 | 300 | 305 | 60 |
| Bronze Bushing-FB092-30070 | 300 | 305 | 70 |
| Bronze Bushing-FB092-30080 | 300 | 305 | 80 |
| Bronze Bushing-FB092-30090 | 300 | 305 | 90 |
| Bronze Bushing-FB092-300100 | 300 | 305 | 100 |
| Bronze Bushing-FB092-300110 | 300 | 305 | 110 |
| Bronze Bushing-FB092-300120 | 300 | 305 | 120 |
Unité: mm
|
d
|
D
|
f1
|
f2
|
L0
-0,40 |
||||||||||||
|
10
|
15
|
20
|
25
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
90
|
100
|
||||
|
10
|
12
|
0,5
|
0.3
|
FB092
1010 |
FB092
1015 |
FB092
1020 |
|
|
|
|
|
|
|
|
|
|
|
12
|
14
|
FB092
1210 |
FB092
1215 |
FB092
1220 |
|
|
|
|
|
|
|
|
|
|
||
|
14
|
16
|
FB092
1410 |
FB092
1415 |
FB092
1420 |
FB092
1425 |
|
|
|
|
|
|
|
|
|
||
|
15
|
17
|
FB092
1510 |
FB092
1515 |
FB092
1520 |
FB092
1525 |
|
|
|
|
|
|
|
|
|
||
|
16
|
18
|
FB092
1610 |
FB092
1615 |
FB092
1620 |
FB092
1625 |
|
|
|
|
|
|
|
|
|
||
|
18
|
20
|
FB092
1810 |
FB092
1815 |
FB092
1820 |
FB092
1825 |
|
|
|
|
|
|
|
|
|
||
|
20
|
23
|
0.8
|
0.4
|
FB092
2010 |
FB092
2015 |
FB092
2020 |
FB092
2025 |
|
|
|
|
|
|
|
|
|
|
22
|
25
|
FB092
2210 |
FB092
2215 |
FB092
2220 |
FB092
2225 |
FB092
2230 |
|
|
|
|
|
|
|
|
||
|
24
|
27
|
|
FB092
2415 |
FB092
2420 |
FB092
2425 |
FB092
2430 |
|
|
|
|
|
|
|
|
||
|
25
|
28
|
|
FB092
2515 |
FB092
2520 |
FB092
2525 |
FB092
2530 |
|
|
|
|
|
|
|
|
||
|
28
|
31
|
|
FB092
2815 |
FB092
2820 |
FB092
2825 |
FB092
2830 |
|
|
|
|
|
|
|
|
||
|
30
|
34
|
1.0
|
0.6
|
|
FB092
3015 |
FB092
3020 |
FB092
3025 |
FB092
3030 |
FB092
3035 |
FB092
3040 |
|
|
|
|
|
|
|
32
|
36
|
|
FB092
3215 |
FB092
3220 |
FB092
3225 |
FB092
3230 |
FB092
3235 |
FB092
3240 |
|
|
|
|
|
|
||
|
35
|
39
|
|
FB092
3515 |
FB092
3520 |
FB092
3025 |
FB092
3530 |
FB092
3535 |
FB092
3540 |
|
|
|
|
|
|
||
|
40
|
44
|
|
|
FB092
4020 |
FB092
4025 |
FB092
4030 |
FB092
4035 |
FB092
4040 |
FB092
4050 |
|
|
|
|
|
||
|
45
|
50
|
1.2
|
0.8
|
|
|
FB092
4520 |
FB092
4525 |
FB092
4530 |
FB092
4535 |
FB092
4540 |
FB092
4550 |
|
|
|
|
|
|
50
|
55
|
|
|
FB092
5020 |
FB092
5025 |
FB092
5030 |
FB092
5035 |
FB092
5040 |
FB092
5050 |
FB092
5060 |
|
|
|
|
||
|
55
|
60
|
|
|
FB092
5520 |
FB092
5525 |
FB092
5530 |
FB092
5535 |
FB092
5540 |
FB092
5550 |
FB092
5560 |
|
|
|
|
||
|
60
|
65
|
|
|
|
FB092
6025 |
FB092
6030 |
FB092
6035 |
FB092
6040 |
FB092
6050 |
FB092
6060 |
FB092
6070 |
|
|
|
||
|
65
|
70
|
|
|
|
|
FB092
6530 |
FB092
6535 |
FB092
6540 |
FB092
6550 |
FB092
6560 |
FB092
6570 |
|
|
|
||
|
70
|
75
|
|
|
|
|
FB092
7030 |
FB092
7035 |
FB092
7040 |
FB092
7050 |
FB092
7060 |
FB092
7070 |
FB092
7080 |
|
|
||
|
75
|
80
|
|
|
|
|
FB092
7530 |
FB092
7535 |
FB092
7540 |
FB092
7550 |
FB092
7560 |
FB092
7570 |
FB092
7580 |
|
|
||
|
80
|
85
|
1.4
|
0.8
|
|
|
|
|
FB092
8030 |
FB092
8035 |
FB092
8040 |
FB092
8050 |
FB092
8060 |
FB092
8070 |
FB092
8080 |
|
|
|
85
|
90
|
|
|
|
|
FB092
8530 |
FB092
8535 |
FB092
8540 |
FB092
8550 |
FB092
8560 |
FB092
8570 |
FB092
8580 |
FB092
8590 |
|
||
|
90
|
95
|
|
|
|
|
FB092
9030 |
FB092
9035 |
FB092
9040 |
FB092
9050 |
FB092
9060 |
FB092
9070 |
FB092
9080 |
FB092
9090 |
|
||
|
95
|
100
|
|
|
|
|
|
|
FB092
9540 |
FB092
9550 |
FB092
9560 |
FB092
9570 |
FB092
9580 |
FB092
9590 |
FB092
95100 |
||
|
100
|
105
|
|
|
|
|
|
|
|
FB092
10050 |
FB092
10060 |
FB092
10070 |
FB092
10080 |
FB092
10090 |
FB092
100100 |
||
|
105
|
110
|
|
|
|
|
|
|
|
FB092
10550 |
FB092
10560 |
FB092
10570 |
FB092
10580 |
FB092
10590 |
FB092
105100 |
||
|
110
|
115
|
|
|
|
|
|
|
|
FB092
11050 |
FB092
11060 |
FB092
11070 |
FB092
11080 |
FB092
11090 |
FB092
110100 |
||
|
d
|
D
|
f1
|
f2
|
L0
-0,40 |
|||||||||
|
25
|
30
|
35
|
40
|
50
|
60
|
70
|
80
|
90
|
100
|
||||
|
115
|
120
|
1.4
|
0.8
|
|
|
|
|
FB092
11550 |
FB092
11560 |
FB092
11570 |
FB092
11580 |
FB092
11590 |
FB092
115110 |
|
120
|
125
|
|
|
|
|
|
FB092
12060 |
FB092
12070 |
FB092
12080 |
FB092
12090 |
FB092
120110 |
||
|
125
|
130
|
|
|
|
|
|
FB092
12560 |
FB092
12570 |
FB092
12580 |
FB092
12590 |
FB092
125110 |
||
|
130
|
135
|
|
|
|
|
|
FB092
13060 |
FB092
13070 |
FB092
13080 |
FB092
13090 |
FB092
130110 |
||
|
135
|
140
|
|
|
|
|
|
FB092
13560 |
FB092
13570 |
FB092
13580 |
FB092
13590 |
FB092
135110 |
||
|
140
|
145
|
|
|
|
|
|
FB092
14060 |
FB092
14070 |
FB092
14080 |
FB092
14090 |
FB092
140110 |
||
|
145
|
150
|
|
|
|
|
|
FB092
14560 |
FB092
14570 |
FB092
14580 |
FB092
14590 |
FB092
145110 |
||
|
150
|
155
|
|
|
|
|
|
FB092
15060 |
FB092
15070 |
FB092
15080 |
FB092
15090 |
FB092
150110 |
||
|
155
|
160
|
|
|
|
|
|
FB092
15560 |
FB092
15570 |
FB092
15580 |
FB092
15590 |
FB092
155110 |
||
|
160
|
165
|
|
|
|
|
|
FB092
16060 |
FB092
16070 |
FB092
16080 |
FB092
16090 |
FB092
160110 |
||
|
165
|
170
|
|
|
|
|
|
FB092
16560 |
FB092
16570 |
FB092
16580 |
FB092
16590 |
FB092
165110 |
||
|
170
|
175
|
|
|
|
|
|
FB092
17060 |
FB092
17070 |
FB092
17080 |
FB092
17090 |
FB092
170110 |
||
|
175
|
180
|
|
|
|
|
|
FB092
17560 |
FB092
17570 |
FB092
17580 |
FB092
17590 |
FB092
175110 |
||
|
180
|
185
|
|
|
|
|
|
FB092
18060 |
FB092
18070 |
FB092
18080 |
FB092
18090 |
FB092
180110 |
||
|
185
|
190
|
|
|
|
|
|
FB092
18560 |
FB092
18570 |
FB092
18580 |
FB092
18590 |
FB092
185110 |
||
|
190
|
195
|
|
|
|
|
|
FB092
19060 |
FB092
19070 |
FB092
19080 |
FB092
19090 |
FB092
190110 |
||
|
195
|
200
|
|
|
|
|
|
FB092
19560 |
FB092
19570 |
FB092
19580 |
FB092
19590 |
FB092
195110 |
||
|
200
|
205
|
|
|
|
|
|
FB092
20060 |
FB092
20070 |
FB092
20080 |
FB092
20090 |
FB092
200110 |
||
|
205
|
210
|
|
|
|
|
|
FB092
20560 |
FB092
20570 |
FB092
20580 |
FB092
20590 |
FB092
205110 |
||
|
215
|
220
|
|
|
|
|
|
FB092
21560 |
FB092
21570 |
FB092
21580 |
FB092
21590 |
FB092
215110 |
||
|
225
|
230
|
|
|
|
|
|
FB092
22560 |
FB092
22570 |
FB092
22580 |
FB092
22590 |
FB092
225110 |
||
|
230
|
235
|
|
|
|
|
|
FB092
23060 |
FB092
23070 |
FB092
23080 |
FB092
23090 |
FB092
230110 |
||
|
240
|
245
|
|
|
|
|
|
FB092
24060 |
FB092
24070 |
FB092
24080 |
FB092
24090 |
FB092
240110 |
||
|
250
|
255
|
|
|
|
|
|
FB092
25060 |
FB092
25070 |
FB092
25080 |
FB092
25090 |
FB092
250110 |
||
|
260
|
265
|
|
|
|
|
|
FB092
26060 |
FB092
26070 |
FB092
26080 |
FB092
26090 |
FB092
260110 |
||
|
270
|
275
|
|
|
|
|
|
FB092
27060 |
FB092
27070 |
FB092
27080 |
FB092
27090 |
FB092
270110 |
||
|
280
|
285
|
|
|
|
|
|
FB092
28060 |
FB092
28070 |
FB092
28080 |
FB092
28090 |
FB092
280110 |
||
|
290
|
295
|
|
|
|
|
|
FB092
29060 |
FB092
29070 |
FB092
29080 |
FB092
29090 |
FB092
290110 |
||
|
300
|
305
|
|
|
|
|
|
FB092
30060 |
FB092
30070 |
FB092
30080 |
FB092
30090 |
FB092
300110 |
||
Le roulement en bronze de phosphore est caractérisé comme un alliage très pur avec une teneur extrêmement faible des impuretés. Le phosphore se mélange bien avec le cuivre, ce qui fait que le matériau réagit à peine sur l'oxygène (oxydation) .Phosphor Tinbronze est un alliage avec une résistance à l'usure élevée et de bonnes propriétés mécaniques. Il y a des bandes et des roulements de plaques de différentes épaisseurs disponibles en bronze en étain phosphore.FB090 BRONZE ROLING ROULE, avec une formulation spéciale de la bande d'alliage de cuivre haute densité comme matrice, peut être roulée à la surface des exigences de l'utilisateur diamant ou trous d'huile hémisphérique, rainure d'huile.de haute densité, de grande capacité de roulement, de bonnes performances résistantes à l'usure et une longue durée de vie.
Split Bronze Sliding Roulement; CUSN8P (DIN 17662); DIN 1494 / ISO 3547; matériau de bague CUSN6 également disponible, faible entretien; avec rainure lubrifiante; Capacité à faible charge et stabilité à faible usure, approprié pour les opérations d'usinage rugueux, CUSN8P (Din 17662). Exporter les manches en cuivre en provenance de Chine, garantir le délai de livraison, soutenir la sélection des technologies et vous fournir des solutions avantageuses.Fabricant de bague en bronze Fournisseur de Chine.pdf
Dimension des roulements à bride à bride selon le roulement en bronze ISO 3547 en bronze avec des trous dans une différence d'épaisseurs de paroiBouche en bronze.Pour des charges extra lourdes dimensions standard en ligne fabriquées en Chine. Cliquez ici pour aller chez nous en lignebuissons cylindriques avec dimensions non standard, buissons à bride, plaques coulissantes, modèles de roulements personnalisés.
Informations supplémentaires: bronze enveloppé: FB090 FB092 FB092H WF WB700 WB702 WB800 WB802 CSB092, WB802, WB902
Roulements cylindriques simples, roulements à bride, lavants, glissement.
Les roulements sont destinés à être pressés dans un boîtier avec une tolérance H7. Le diamètre intérieur du roulement de la diapositive maintiendra alors la tolérance H9.
+86 (0) 57384499350www.viiplus.com
FB092-5050dessin de produits.pdf
Vidéo
