Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings

Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings

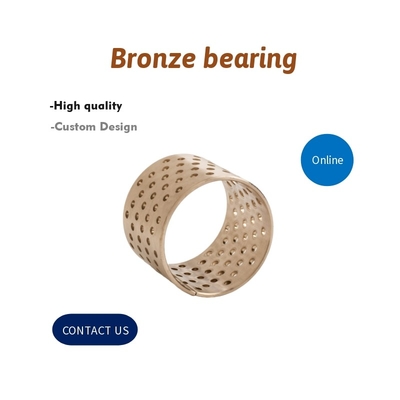

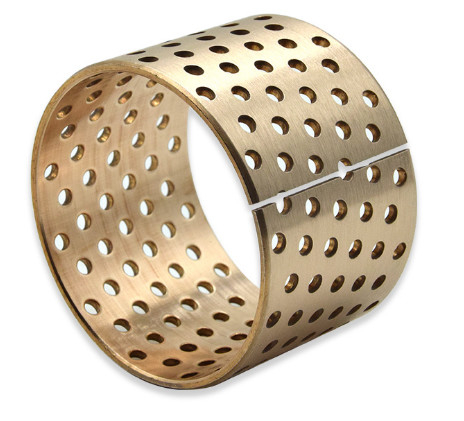

CuSn8,  Cylindrical Wrapped Bronze Bearings
Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings

Image Grand :  Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings

Détails sur le produit:
Lieu d'origine: FABRIQUÉ EN CHINE
Nom de marque: VIIPLUS
Certification: DIN 1494 / ISO 3547
Numéro de modèle: Bagues en bronze CuSn8P (DIN 17662) DIN 1494/OIN 3547
Conditions de paiement et expédition:
Quantité de commande min: BAGUES DE COUTUME DE MATE-TO-ORDER
Prix: Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Détails d'emballage: CAISSE EN BOIS DE PALETTE EN BOIS DE CARTON D'EXPORTATION
Délai de livraison: 3 - 15 BUSINESS DAY
Conditions de paiement: T/T
Capacité d'approvisionnement: Incidence en bronze perforée, incidences enveloppées en bronze simples

Bronze Wrapped Plain Bearings CuSn8 With Lubricating Holes Cylindrical Self-Lubricated Bushings

description de
Matériel de bague: CUSN8 Caractéristique: Résistance à hautes températures, résistance à l'usure, résistance à la corrosion
représentation: Capacité de charge et longue durée élevées Type: Douille, bride, rondelle de poussée
Bagues auto-lubrifiantes: ID60*OD65*L50mm, perforé Application: machines agricoles, freins et certaines machines de construction.
Taille de bague: Les dimensions spéciales et les tailles impériales sont disponibles sur demande Nom de produit: Le fabricant de la Chine a adapté la bague aux besoins du client de cuivre enveloppée par 092
Surligner:

Bronze Wrapped Plain Bearings

,

bronze self lubricating bushings

092 Bronze Wrapped Plain Bearings | Metric Wrapped Bronze CuSn8-VIIPLUS Bearings

Wrapped bronze bearings consist entirely of phosphor bronze CuSn8. CuSn8 is characterized by the purity of the alloy with very little contamination. Wrapped bronze bearings are made from strips, which are then wound and calibrated.



GET A FREE QUOTE ONLINE NOW !



VIIPLUS specialized in research and development, production and sale of self-lubricating bearings. The main Bronze Wrapped Plain Bearings products are metallic polymer composite bearings, bimetallic composite bearings, bronze coated bearings, self-lubricating monometallic bearings and other bearings.



VIIPLUS is the perfect choice for your business Self-lubricated Parts needs.


Provide You Best Self-lubricating Bearings Solution.

Self-lubricating bearings feature precision tolerances, proprietary internal geometries and quality self-lubricating materials. our bronze, cylindrical bushes, flanged bushes, thrust washers, sliding bearings, precision and housed unit bearings deliver strong performance, consistently and reliably.

We collaborate with global customers in diversified application. From wind energy in the North Sea to mining machinery crossing the Sahara, we bring to life know-how and innovation, providing true marketplace advantage.

To this day, VIIPLUS’s founding vision of making the world move more efficiently and reliably remains at the core of our business.

As the china supplier of self-lubricating bearings, The VIIIPLUS Company applies its deep knowledge of metallurgy, tribology and cast systems to improve the reliability and efficiency of equipment, machinery and energy worldwide.





wrapped bronze bearings

Bronze Bearing China | High Quality, Factory Price‎

092 Bronze bearings are thin-walled bearings made of bronze materials that are uniformly and uniformly processed through oil injection holes and twisted. The bearing has the advantages of a large supply of oil, convenient installation and small structural volume, and can replace the use of a copper sleeve, which can significantly reduce the cost. Currently, the Bronze Wrapped Plain Bearings product is used in conveyors, elevators, rolling machines, leveling machines, for example, at medium load and at low speed.



092 comes from 090; the difference between the 090 and 092 is the recesses on the work surface, which are replaced with through holes. These holes will increase the capacity for collecting grease, which forms a lubricating film at the beginning of the movement and reduces friction. Suitable for high load and low speed applications such as construction, transport and agricultural machinery.



Bronze Bushing Available, Down A Catalog:FB-090 series bronze bushing.pdf,Custom S​olutions.Enquire Online


Bronze Bushing 60-65-50mm ,Perforated,Sliding Flange Bearings Prcies,Metric Size For Containers,Industrial Equipment & Machinery


Straight Bronze Bushing,ID60*OD65*L50mm Bronze bushing straight F092 ID60 OD65 L50.pdf.

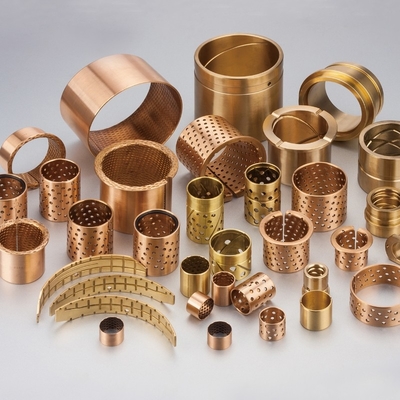

Available Bronze Wrapped Plain Bearings products: straight sleeve, thrust gasket, flanged bushing, bearing bush, sliding plate, steel sleeve assembly.



Chemical Composition

Material Cu Sn P Pb Zn
CuSn8 91.3% 8.5% 0.2% / /







092 Oil Indentations Holes

Bearing Play




Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.









Structure


CuSn8 bronze with either grease pockets or holes













Technical Data

Property Data
Max.load Max. static load  120N/mm²
Max. dynamic load 40N/mm²
Max. speed 2.5m/s
Max.PV 2.8N/mm²・m/s
Friction coefficient (μ) 0.08~0.25
Temperature range -100℃~+200℃
Heat conductivity coefficient 60W/m・K
Coefficient of thermal expansion 15×-6/K
Bronze bearing 092

Tolerances

Shaft dia: e7 / f7
Housing: H7




Availability



Bearing forms available in standard dimensions



·Cylindrical bushes
·Flanged bushes
·Thrust washers
·Sliding plates





Metric bearings and imperial bushings are made to order: standard forms of bushings of special sizes, half couplings, special forms obtained by stamping or deep drawing, individual designs of bushings



Feature


1. Save a lot of copper, save the car copper set time.
2. Light weight and low cost compared with axle sleeve and rolling bearing made by car.
3. It can be processed into various holes and pits on the friction surface and store certain oil and grease.
4. Extremely high bearing capacity, especially suitable for rough friction surface.



Characteristics


1.Easy to assemble
2. High load capacity
3. Excellent wear resistance with lower friction
4. High level thermal conductivity
5. Minimum overall dimensions
6. Chemical resistance
7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving



Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 ),which can achieve exceptional material properties.



Depending on the lubrication conditions, we can provide diamond-shaped lubricating pins (grease) and include holes (oil), a self-lubricating cylindrical bushing with a thin-walled bronze bushing, coated with CuSn8, with a bronze support and a cylindrical bushing, which can quickly build up a lubricating film . movement, and then reduce working friction.



Perforated split bronze bushing series for better lubrication and longer service life. The orifice provides additional lubrication storage to extend the lubrication service interval.
Perforated bronze Bronze Wrapped Plain Bearings products are available in sleeves, flanges and plates, available in British and metric sizes. Typical applications include material handling, hydraulic cylinders, lifting equipment and agricultural machinery.



 Application

·Agriculture machinery
·truck cranes
·construction machinery
·impact loads
·Others



This series of Bronze Wrapped Plain Bearings products are widely used in agricultural machinery, construction machinery, construction machinery and other high-load low-speed occasions.



BUSHING TYPES FOR SALE



Cusn8p bronze bushing fb092 copper bushes groove bushing fb092 brass bushing cusn8 bushing fb092 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb092 oilless bushing



We can offer special sizes, shapes, shapes or lengths on request.

Please contact us for a quote or more information.



Bronze Wrapped Plain Bearings are sold well over the world ,such as Canada, Europe, Auatralia and so on.
